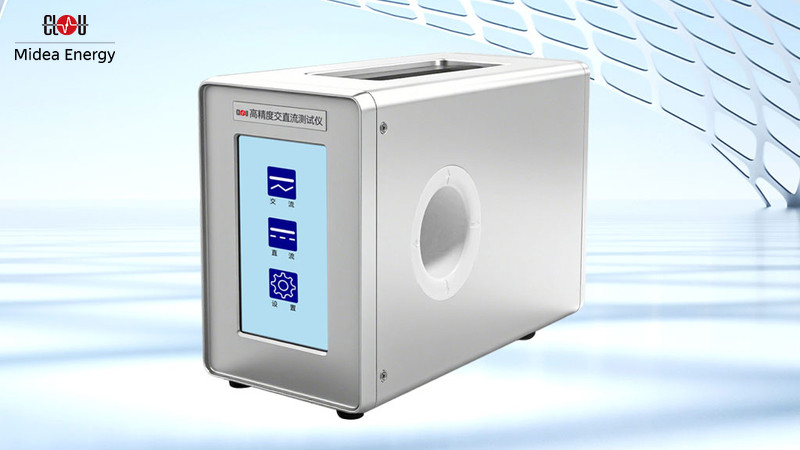

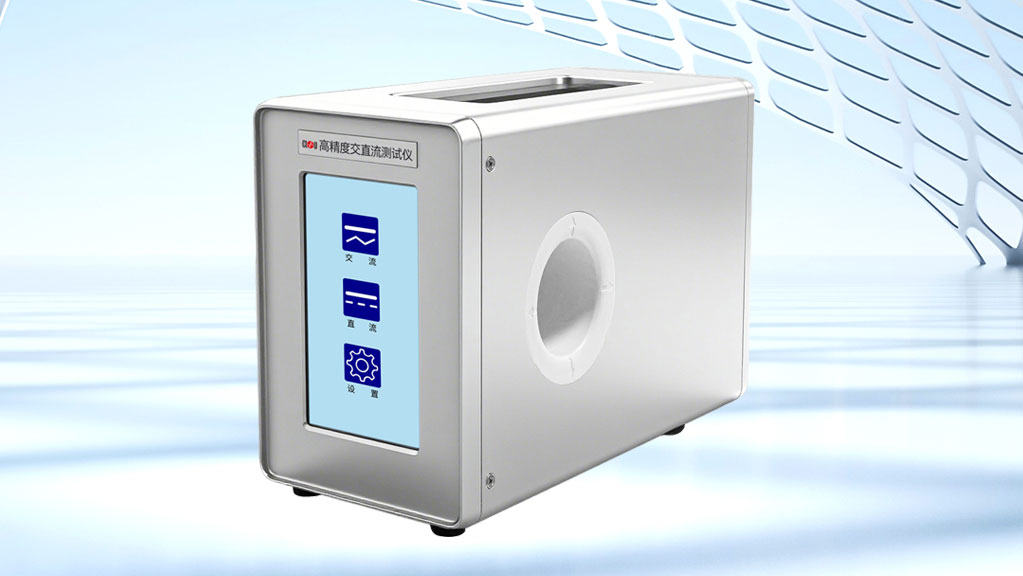

The CL6116C is a high-precision AC/DC tester that is equipped with a high-definition display screen, capable of measuring relevant parameters such as voltage, current, phase, and frequency.
Functions
- Measures DC voltage, current, and power;
- Measures AC voltage, current, phase, frequency, and power;
- Equipped with RS485/RS232 interfaces;
- Features multiple ranges with automatic range switching and high-definition touchscreen operation.
Technical Parameters
| Parameter | DC / AC |
| Voltage Measurement Range | 1 … 1000 V, 1 … 707 V |
| Voltage Measurement Resolution | 0.005%, 0.005% |
| Voltage Measurement Accuracy | 0.02%, 0.05% |
| Current Measurement Range | 1 … 1000 V, 1 … 707 V |
| Current Measurement Resolution | 0.005%, 0.005% |
| Current Measurement Accuracy | 0.02%, 0.05% |
| AC Phase Measurement Range | 0.00° … 359.99° |
| Phase Measurement Accuracy | ± 0.01° |
| AC Frequency Measurement Range | 40 Hz … 70 Hz |
| Frequency Measurement Accuracy | ±0.1Hz |
| DC Power Measurement Accuracy | 0.02% |
| Operating Power Supply | AC 220 V ± 10%, 50 Hz ± 5% |
| Operating Temperature | 23 ℃ ± 10 ℃ |
| Relative Humidity | ≤ 85% RH without condensation |
| Dimensions (mm) | (W × H × D): 485 × 133 × 500 |
| Mass | Approx. 8.5 Kg |
