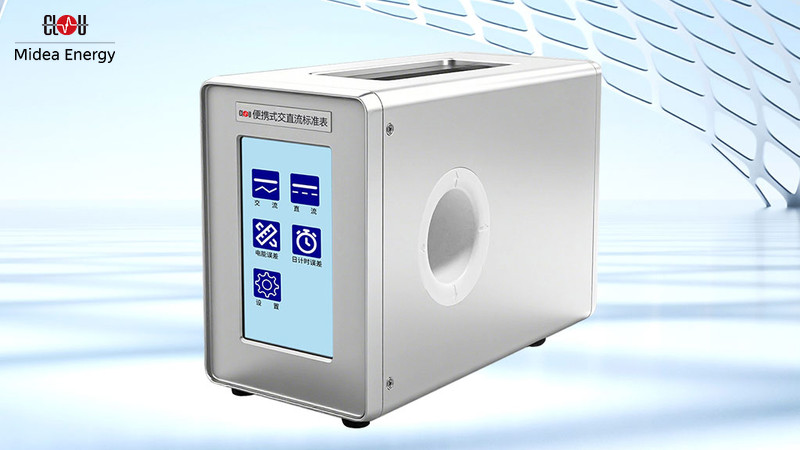

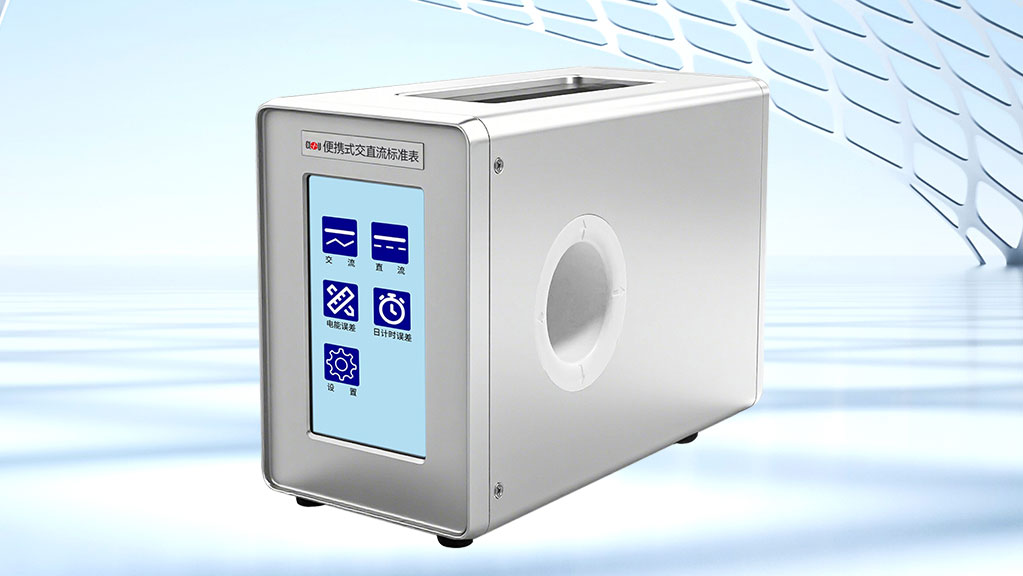

The CL6117C is a through-type AC / DC standard meter, which is capable of measuring electrical parameters including AC/DC voltage, current, frequency, phase and active power.
Functions
- Capable of measuring electrical parameters including AC/DC voltage, current, frequency, phase, active power and active energy;
- Verifying energy error and daily timing error;
- Performing energy register test;
- Conducting ripple test for detecting AC ripple below 1 kHz;
- Measuring voltage and current distortion, implementing 2nd–63rd harmonic analysis, and displaying real-time harmonic components, content and distortion;
- Equipped with energy pulse input port for real-time verification of various active energy meters;
- Provided with standard energy pulse output port with automatic pulse constant setting;
- Fitted with RS232 and RS485 communication portsfor direct PC connection, with optional CAN communication port;
- Supporting automatic multi-range switching of voltage and current.
Technical Parameters
| Parameter | DC / AC |
| Voltage Measurement Range | 1 … 1000 V, 1 … 707 V |
| Voltage Measurement Resolution | 0.005%, 0.005% |
| Voltage Measurement Accuracy | 0.02%, 0.05% |
| Current Measurement Range | 1 … 1000 V, 1 … 707 V |
| Current Measurement Resolution | 0.005%, 0.005% |
| Current Measurement Accuracy | 0.02%, 0.05% |
| AC Phase Measurement Range | 0.00° … 359.99° |
| Phase Measurement Accuracy | ± 0.01° |
| AC Frequency Measurement Range | 40 Hz … 70 Hz |
| Frequency Measurement Accuracy | ±0.1Hz |
| DC Power Measurement Accuracy | 0.02% |
| Operating Power Supply | AC 220 V ± 10%, 50 Hz ± 5% |
| Operating Temperature | 23 ℃ ± 10 ℃ |
| Relative Humidity | ≤ 85% RH without condensation |
| Dimensions (mm) | (W × H × D): 485 × 133 × 423.5 |
| Mass | Approx. 8.5 Kg |
