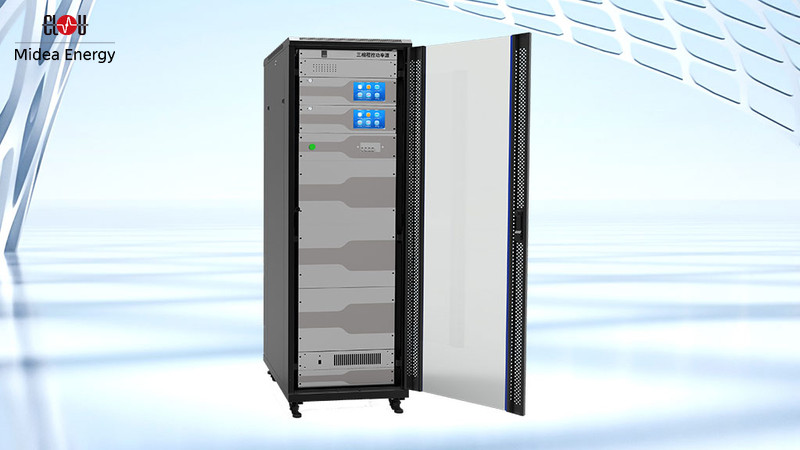

The CL309F is a three-phase programmable power source featuring high output power and excellent cost-effectiveness. It offers a wide regulation range and high precision, and supports the output of multiple waveforms compliant with IEC Recommendation R46.
Function
Ultra-High Stability
Meets the detection requirements of Class 0.02 standard electric energy meters
Wide Range
Supports current from 0.3mA to 150A and voltage from 30V to 456V output
Comprehensive Functions
Supports fundamental and harmonic output, supports 2nd to 41st harmonic output, supports R46-related harmonic output, meets the latest electric energy meter detection requirements
Good Economy
Adopts digital power amplifier technology, saves energy and reduces consumption, with an efficiency of over 85%
Technical Parameters
| Voltage Output Range | 30 V … 456 V (30 … 700 V Optional) |
| Display Accuracy | ± 0.1% |
| Current Output Range | 03 mA … 150 A |
| Display Accuracy | ± 0.1% |
| Phase Range | 0.00° … 359.99° |
| Accuracy | ± 0.01° |
| Frequency Range | 45 Hz … 65 Hz |
| Accuracy | ± 0.01 Hz |
| Harmonic Order | 2 … 51 |
| Adjustment Resolution | 0.1% (Relative to Fundamental Wave) |
| Harmonic Content | Meets R46 Requirements |
| Output Stability | 0.02%/120s (I ≥ 25 mA) |
| Operating Power Supply | 3 × 220 / 380 V ± 10%, 50 Hz ± 5% |
| Operating Temperature | 23 ℃ ± 10 ℃ |
| Relative Humidity | ≤ 85% RH Without Condensation |
| Mass | Approximately 410 kg |
