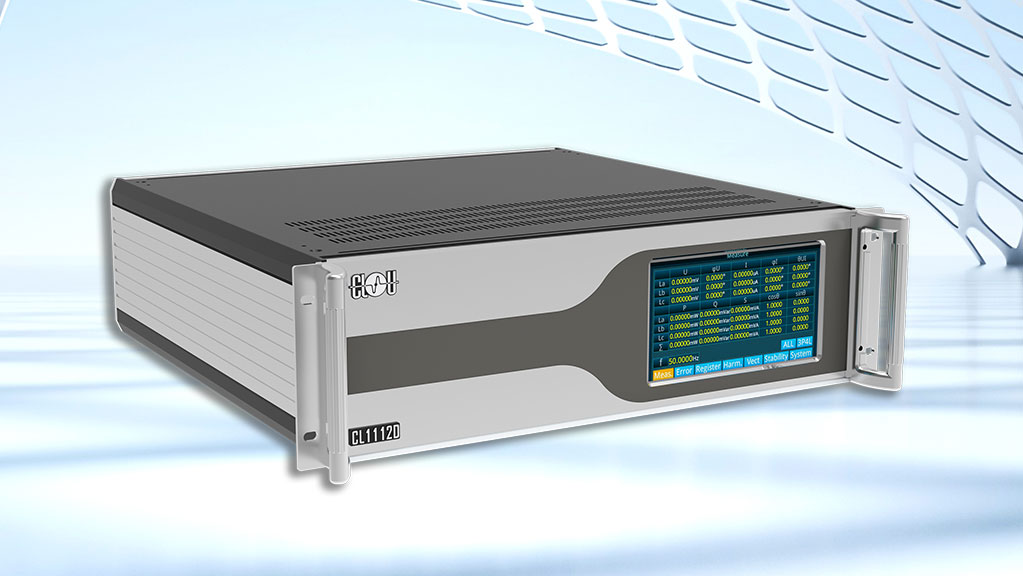

Class 0.02 Single Phase Multifunctional Standard CL1112D

CL1112D is a high-precision, multi-functional, cost-effective single-phase reference energy meter developed in compliance with Recommendation R46 issued by the International Organization of Legal Metrology (OIML). It is designed for use in the testing and calibration of energy meters, power terminals, and other electrical measuring instruments, and for the traceability of energy meter verification devices and other metrological equipment.

Function

It can measure the distortion factor of voltage and current, as well as analyze the 2nd to 64th harmonics.
It is capable of measuring all waveforms specified in Recommendation R46, including peak-top waves, flat-top waves, odd harmonics, subharmonics, high-order harmonics, and zero-crossing waves.

Specification

Voltage Measurement
Voltage Range	30 V … 576 V
Voltage Accuracy	± 0.02% (30 V ≤ U ≤ U max)
Current Measurement
Current Range	5 mA … 120 A
Current Accuracy	± 0.02% (10 mA ≤ I ≤ 120 A), ± 0.05% (1 mA ≤ I ≤ 10 mA)
Phase Measurement
Phase Range	0.00° … 359.99°
Phase Accuracy	± 0.01 (I ≥ 10 mA, U ≥ 30 V)
Frequency Measurement
Frequency Range	40 Hz … 70 Hz
Frequency Accuracy	± 0.01 Hz
Power Factor Measurement
Power Factor Range	– 1.0 … 0 … + 1.0
Power Factor Accuracy	± 0.0005
Power Measurement
Active / Reactive / Apparent Power Accuracy	± 0.02% (30 V ≤ U ≤ U max, 10 mA ≤ I ≤ I max, PF ≥ 0.5)
Electrical Energy Measurement
Active / Reactive Energy Meter Accuracy	± 0.02% (30 V ≤ U ≤ U max, 10 mA ≤ I ≤ I max, PF ≥ 0.5)
Pulse Inupt / Pulse Output	0 … 50 KHz
Harmonic Power / Energy	Harmonic order 2nd – 20th: ± 0.2% of reading + 0.1% of range; Harmonic order 21st – 64th: ± 0.6% of reading + 0.15% of range
Other Indicators
Operating Power Source	AC 220 V ± 10%, 50 Hz ± 5%
Power Consumption / Warm-up Time	< 120 VA / < 30 mins
Dimensions (mm)	(W × H × D): 485 × 133 × 500
Weight	Approx. 18 kg
