Dual-Mode Communication Unit Integrated Tester

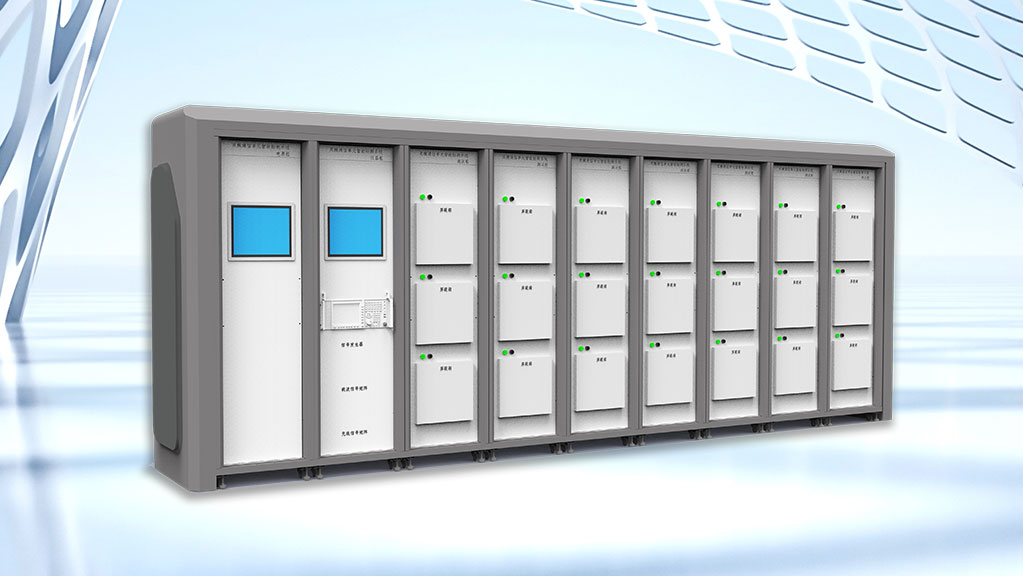

The CL3900 Integrated Detection Device for Dual-Mode Communication Unit is a test device designed for performing performance, protocol conformance, and interoperability tests on dual-mode communication units (STA and CCO), and is suitable for the functional and performance evaluation of dual-mode communication units.

Functions

Performance Testing
Carrier Communication Performance Test
Wireless Communication Performance Test
Protocol Conformance Testing
HPLC Data Link Layer Protocol Conformance Test
RF Data Link Layer Protocol Conformance Test (HS)
Application Layer Protocol Conformance Test
Interoperability Testing
Full-Network Networking Test
Station Network Access Test
Multi-Network Comprehensive Test

Technical Parameters

Switch Matrix
Frequency	0.7 MHz … 12 MHz, 470 MHz … 510 MHz
Attenuation Range	0 … 127 dB, Step Value: 1 dB
Signal Ports	12
Wireless Signal Matrix
Frequency	470 MHz … 510 MHz
Attenuation Range	0 … 127 dB, Step Value: 1 dB
Signal Ports	18
Three-Phase Islated Purified Regulated Power Supply
Input / Output Voltage	Three-Phase Four-Wire 380 V, Frequency: 50/60 Hz
Input Voltage Regulation Range	380 V ± 15%
Output Voltage Regulation Accuracy	± 1%
Others	Add Isolation Transformer, Add Three-Stage EM Filter
