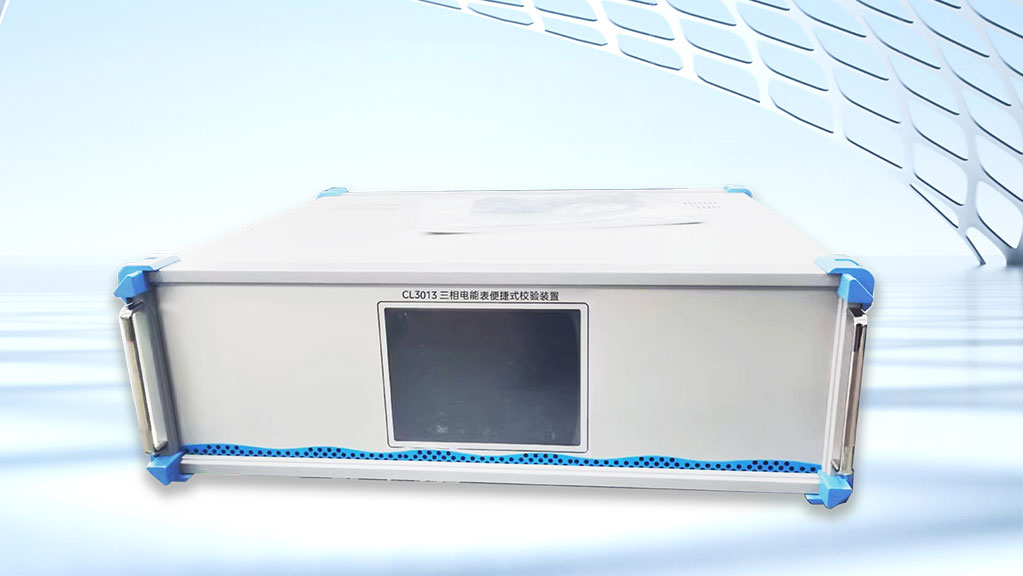

The CL3013 is a Protable Verification Device for Three-phase Electric Energy Meter, characterized by fast calibration and stable performance.
Functions
- In accordance with relevant electricity meter verification standards, this device performs automatic or step-by-step manual testing of key parameters for single-phase and three-phase meters, including basic error, creep, starting, and standard deviation.
- It also conducts variation tests resulting from voltage, frequency, and harmonic influences.
- The built-in power source features fast and stable output, with AC current per phase reaching up to 120A.
- Voltage, current, and phase angle for each phase can be independently adjusted, providing highly flexible power source control.
- The maximum pulse input frequency is 40 kHz.
- Featuring a large color LCD screen with a fully Chinese menu, the device is intuitive and efficient to operate. Common functions and basic current load points are accessible via one-touch shortcuts.
- It can simultaneously verify the basic error of up to three single-phase meters (or one three-phase meter). Each meter position is equipped with a standard independent RS485 port for communication tests and other multifunctional experiments.
Technical Parameters
| Item | Value |
|---|---|
| AC Voltage Output Range | 30 V … 456 V |
| Stability | 0.02%/120S |
| Distortion | ≤ 0.2% (non-capacitive load) |
| Output Voltage Load | 25 VA/phase |
| AC Current Output Range | 0.05 A … 100 A |
| Stability | 0.02%/120S |
| Distortion | ≤ 0.2% (non-capacitive load) |
| Output Current Load | 25 VA/phase |
| Phase Output Range | 0.00° … 359.999° |
| Accuracy | ± 0.05° |
| Frequency Output Range | 45 Hz … 65 Hz |
| Accuracy | ± 0.002 Hz |
| Quality | Approximately 30 kg |
| Active Power Stability | 0.02%/120S |
| Reactive power stability | 0.02%/120S |
| Active Power Accuracy | ± 0.05% |
| Reactive Power Accuracy | ± 0.1% |
| Power Factor Adjustment Range | – 1 … 0 … + 1 |
| Accuracy | ± 0.0005 |
| Harmonic Order | 2 to 21 times |
| Harmonic Content | 0 … 40% |
| Harmonic Phase | 0 … 359.99° |
| Working Power Supply | AC 85 V … 265 V, 50 Hz ± 5% |
| Operating Temperature | 0 ℃ … 40 ℃ |
| Relative Humidity | ≤ 95% no condensation |
| Size | 471 mm × 190 mm × 445 mm |
