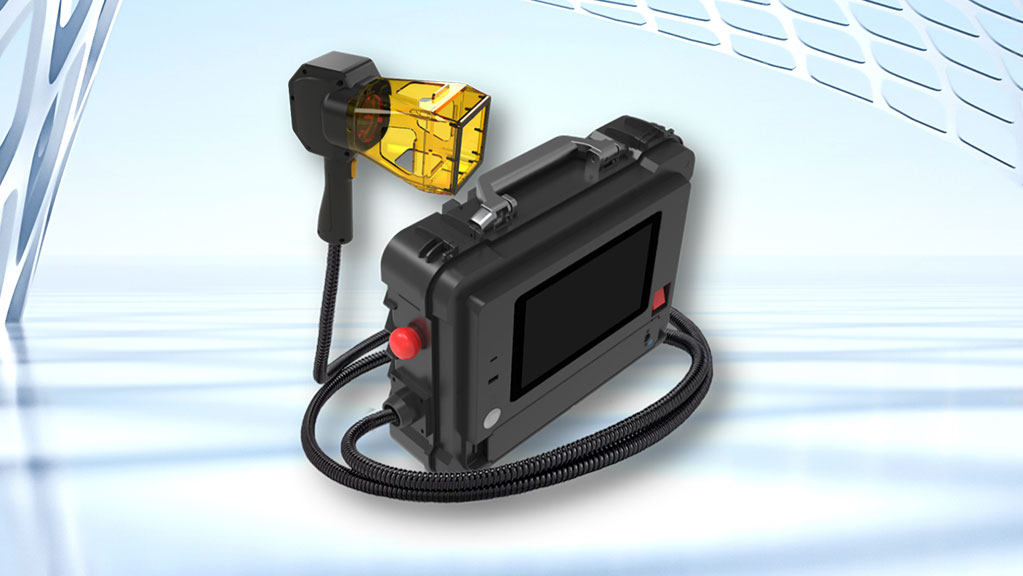

The CL4208 (CW-A) is equipped with a power supply system featuring a 22.2V rechargeable lithium battery, enabling continuous operation for more than 4 hours. Lightweight and multi-functional, it is ideal for etching large, heavy or unwieldy workpieces. Our equipment has been submitted to the China Electric Power Research Institute (CEPRI) for testing and has obtained the corresponding test report.
Functions
- It is equipped with USB, WIFI, Bluetooth and 4G full-network communication functions.
- It comes with an emergency stop switch for immediate operation interruption at any time.
- It features Beidou/GPS standard positioning function.
- It boasts high electro-optical conversion efficiency, excellent output beam quality and superior reliability.
- A built-in communication authentication module (security unit) ensures data security.
- The etched marks can be reliably read for 30 years without causing material deformation, deterioration or coverage.
Technical Parameters
| Etching Index | Marking Range: Standard 50 mm × 50 mm, Optional 100 mm × 100 mm; Supports clear etching of non-metering/collecting power equipment made of four materials: PC+ABS, SMC, stainless steel, and hot-dip galvanized. |
| Laser Type | Fiber Laser Generator |
| Output Power | ≥ 30 W |
| Printing Method | High-precision Two-dimensional Scanning |
| Marking Speed | ≥ 7000 mm/s |
| Main Control System | Highly integrated motherboard, using Windows operating system, with built-in color large screen over 7 inches, supporting Bluetooth communication. |
| Marking Line Type | Dot Matrix/Vector All in One (can mark both dot matrix and vector) |
| File Format | BMP / DXF / HPGL / JPEG / PLT |
| Barcode / QR Code | CODE39, CODE128, CODE126, QR, Zhenzhi Code, DM, Vision Code, etc. |
| Battery Capacity | ≥ 12 Ah |
| Working Duration | Standby Duration ≥ 6h, Maximum Usage Duration ≥ 4h |
| Net Weight of Equipment | ≤ 10 kg |
| Body Dimensions | Handheld Dimensions: ≤ 245 mm × 80 mm × 155 mm; Control Box Dimensions: ≤ 325 mm × 175 mm × 275 mm |
| Relative Humidity | 0% … 85% RH (no condensation) |
