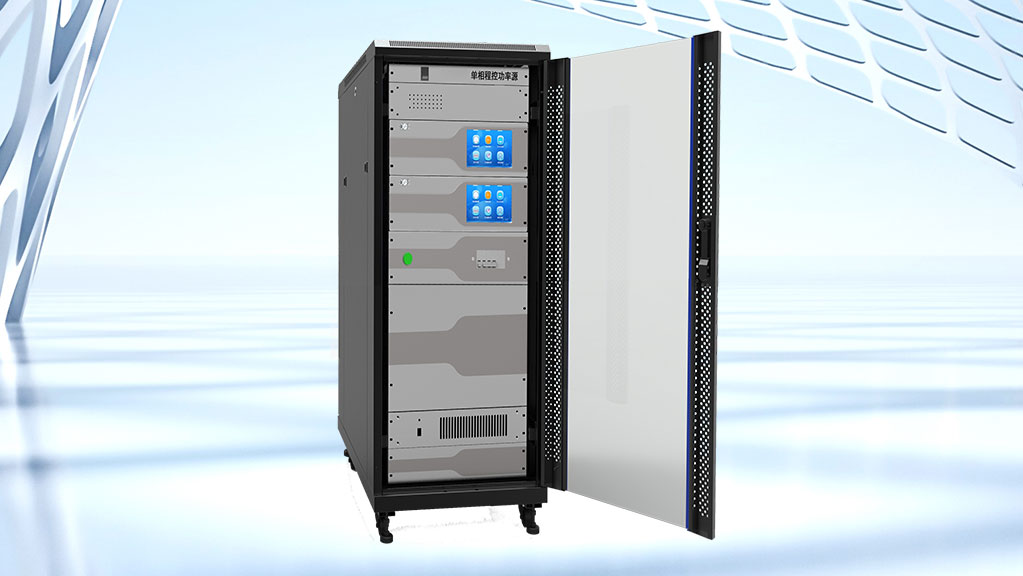

Single-phase Power Source CL109C / CL109D

CL109C / CL309C is a single / three-phase programmable power source. It features high stability in voltage and current output, and high output power. It supports multiple waveforms in accordance with the R46 standard.

Product Features

【CL109C】

High Output Power: Voltage output power of 900 VA/phase, current maximum output power of 2,500 VA/phase;
High Stability: Power stability better than 0.02%/120s;
Powerful Features: Support voltage output up to 456 V and current output up to 120 A;
· Support harmonic output from the 2nd to the 51st order;
· Support various waveforms including R46-related peaked wave, flat-top waves, and higher-order harmonics;
· Support waveform editing and output;
· Support voltage sags and short-term interruptions;
· Support rapid changes in load current.

【CL309C】
High Output Power: Voltage output power of 900 VA/phase, current maximum output power of 2,500 VA/phase;
High Stability: Power stability better than 0.02%/120s;
Powerful Features: Support voltage output up to 456 V and current output up to 120 A;
· Support harmonic output from the 2nd to the 51st order;
· Support various waveforms including R46-related peaked wave, flat-top waves, and higher-order harmonics;
· Support waveform editing and output;
· Support voltage sags and short-term interruptions;
· Support R46 low-current output of 0.3 mA, and support rapid changes in load current.

Technical Parameters

	CL109C	CL309C
Voltage Output
Output Range	30 V … 456 V	30 V … 456 V (30 … 700 V optional)
Accuracy	± 0.1%	± 0.1%
Current Output
Output Range	1 mA … 120 A	1 mA … 120 A
Accuracy	± 0.1%	± 0.1%
Phase
Range	0.00° … 359.99°	0.00° … 359.99°
Accuracy	± 0.01°	± 0.01°
Frequency
Range	45 Hz … 65 Hz	45 Hz … 65 Hz
Accuracy	± 0.01°	± 0.01°
Harmonic Output
Harmonic Order	2 to 51 times	2 to 51 times
Adjustment Fineness	0.1% (Relative to fundamental)	0.1% (Relative to fundamental)
Harmonic Content	Meet R46 requirements	Meet R46 requirements
Power Stability	0.02% /120s (I ≥ 25mA)	0.02% /120s (I ≥ 25mA)
Operating Power Supply	3 × 220/380 V ± 15%, 50 Hz ± 5%	3 × 220/380 V ± 15%, 50 Hz ± 5%
Operating Temperature	23℃ ± 10℃	23℃ ± 10℃
Relative Humidity	≤ 85%RH, non-condensing	≤ 85%RH, non-condensing
Weight	Approximately 280 kg (single-phase)	Approximately 410 kg (three-phase)
