Hand Held Unit for Data Acquisition

Hand-Held-Unit
Hand Held Unit

Recording data for energy meter deployment in the field needs a strong hardware.

Our CLOU software solutions, e.g. for field deployment management (FDM) are using this type of hand held unit (HHU).

The deployment module of our AMI system or 3rd party systems can be connected to our FDM software.

Hand-Held-Unit-with-deployment-software

A proper and timely data-acquisition is essential for the success of AMI projects.

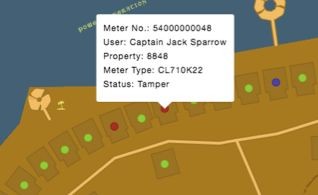

Here is an example for usage in the field, including acquisition of the meter location

Powerful Data Collection

  • one dimensional barcode scanning
  • two-dimensional barcode scanning
  • direct part mark (DPM) reading
  • RFID label reading
  • infrared (IR) communication
  • GPS position detection
  • high resolution (HD) camera

Various Communication Modes

  • WAN communication
  • Wi-Fi communication
  • Bluetooth communication
  • USB 2.0 interface
  • Multifunction contactless interface (for RS232 or RS-485 communication)
  • Cellular mobile phone

Designed for harsh environment

  • Ingress protection IP65
  • can bear drops from 1.5 m hight
  • temperature range -20°C to +60°C

Specifications

itemdata
CPUSamsung Exynos4412 Quad-Core 1.4 GHz
Operating systemAndroid 4.2.2
Memory4 GB, extendable to 32 GB
Display3.5 inch, Multi-touch
Keyboard24 keys physical keyboard
Battery4000 mAh, rechargeable
optional 6000 mAh
Dimensions156 mm x 72 mm x 31mm
Weight312 g (with 4000 mAh battery)
