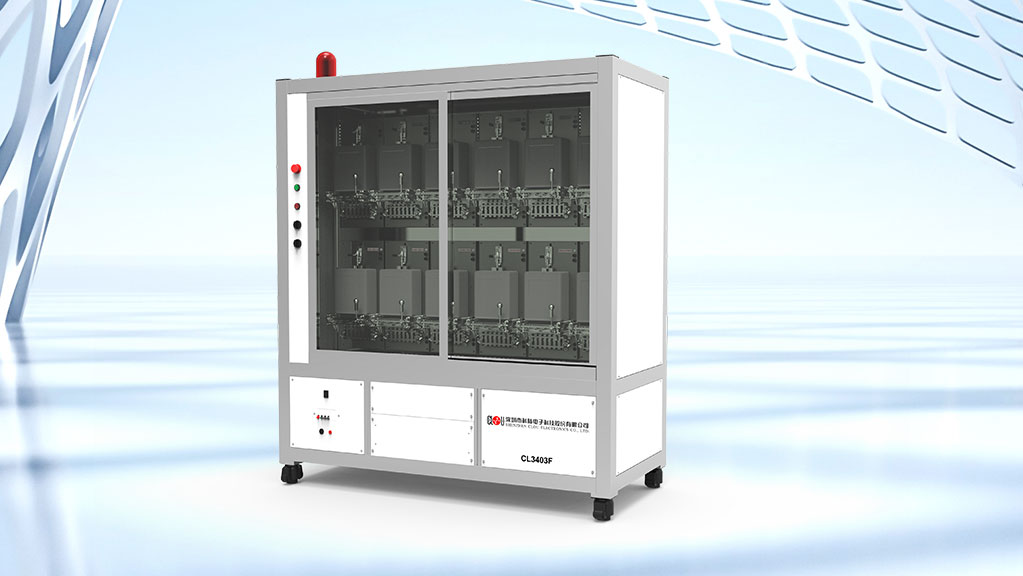

CL3401 / CL3403 is an AC withstand voltage test device designed for electric energy meters. It can be manually controlled via the controller, or managed and controlled via a computer.
Functions
- It can meet various withstand voltage test requirements: voltage / current to ground; voltage to current; between current circuits.
- It is suitable for AC withstand voltage tests on all types of electric energy meters.
- The output voltage value and leakage current protection value can be manually set.
- An emergency stop button is provided for ease of operation and safety.
- A protection device is equipped; the high voltage will be automatically cut off if personnel accidentally approach the high-voltage area.
- The withstand voltage test voltage can be set within the range of 300 … 4000 V.
- The withstand voltage duration can be set from 0 to 999 seconds.
- The withstand voltage leakage current protection threshold can be set as: (0.5 … 100) mA ± 5%.
- It can perform withstand voltage tests on the voltage/current circuits of the meter under test to ground, and provides an auxiliary terminal grounding port with a voltage < 50 V.
- It can display the high-voltage output value and the elapsed time of the ongoing withstand voltage test, and automatically cut off the high voltage after the test is completed.
- Acoustic and optical alarms are activated during the withstand voltage test.
Technical Parameters
| Grade | 0.05 Class |
| Meter Positions | Single-Phase: 12 positions, 24 positions, 48 positions, etc.; Three-phase: 12 positions, 24 positions, etc. |
| Maximum Leakage Current | 100 mA |
| Current Accuracy | ± 5% |
| Maximum Output Power | 500 VA (5.000 kV / 100 mA) |
| Output Waveform | Sine Wave |
| Output Waveform Distortion | ≤ 5% (No-load or Pure Resistive Load) |
| Operating Power Supply | AC 220 V ± 10%, 50 Hz ± 5% |
| Operating Temperature | 23℃±10℃ |
| Relative Humidity | ≤ 85% RH Without Condensation |
