Single Phase Meter Enclosure CL754E

meter-box-CL754E
meter-box-CL754E
size: 280 mm x 170 mm x 124 mm

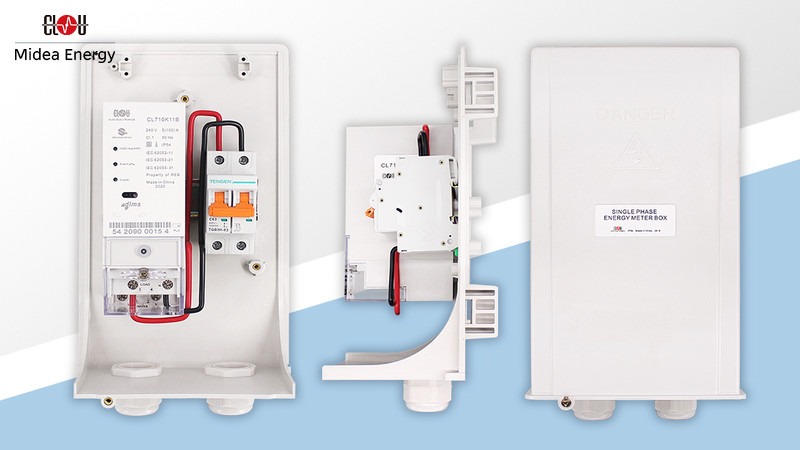

The CL754E single phase energy meter enclosure fits for one DIN-rail split type energy meter and one 1 Ph + N or 2 Ph circuit breaker.
The enclosure is made of polycarbonate material with excellent electrical insulating, flame resistance and weather resistance. It is lightweight and small, shockproof, UV resistant and anti-ageing.

The enclosure is designed with an anti-tamper switch, electrical safety protection and user separation control functions.
The cover is slided-in from the top after the meter installation is finished.

  • Enclosure material polycarbonate with 10 % glass fibre
  • Two Pg cable glands on the bottom of the enclosure
  • Ingress protection: IP 54
  • Sealable enclosure cover
  • Enclosure cover open detection
  • Mechanical resistance: IK 09
  • Suitable for wall mounting and pole mounting


pdf imageFill the form and get this beautiful PDF link instantly to your email-inbox.
Title: CL754E_V1_EN
file size: 389.66 KB
published: 2020-03-17
