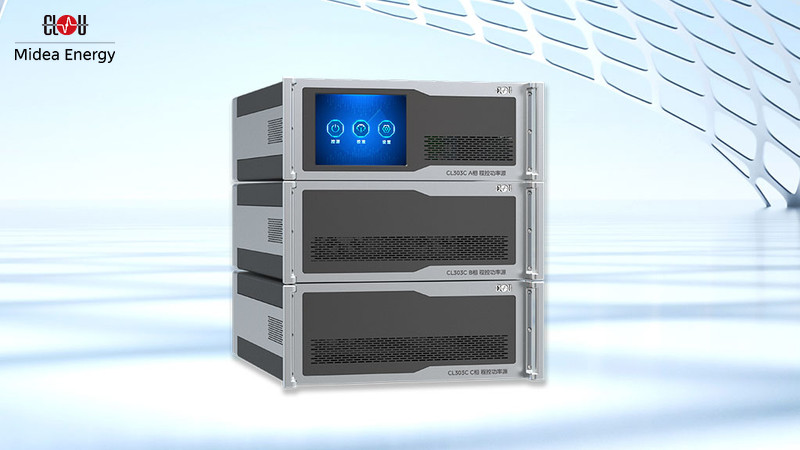

Three-phase Programmable Power Source CL303C

CL303C is a Class 0.01 high-precision AC power source, featuring a wide regulation range and high accuracy.

Output Power: 100 VA per phase for voltage output; 200 VA per phase for maximum current output.
Display: Equipped with a large-screen color LCD, delivering an intuitive and clear interface.
Split Structure: Consists of three modules: Phase A Module, Phase B Module and Phase C Module.
High Stability: Power stability is better than 0.01%/120 s.
Powerful Functions: Supports voltage output up to 456 V and current output up to 120 A; supports 2nd to 51st harmonic output; supports low-current output down to 0.3 mA.

Voltage Output Range	30 V … 456 V
Output Stability	≤ ± 0.01%/120s
Current Output Range	0.3 mA … 120 A
Output Stability	≤ ± 0.01%/120s (I ≥ 50 mA)
Range	0.00°~359.99°
Adjustment Resolution	≤ ± 0.01°
Range	45 Hz … 65 Hz
Adjustment Resolution	± 0.01 Hz
Harmonic Order	2 … 51
Adjustment Resolution	0.1% (relative to fundamental wave)
Harmonic Content	≤ 40%
Operating Power Supply	Single-phase power supply, voltage range AC 220 V ± 5%
Operating Temperature	23 ℃ ± 10 ℃
Relative Humidity	≤ 85% RH without condensation
Mass	Approx. 90 Kg
