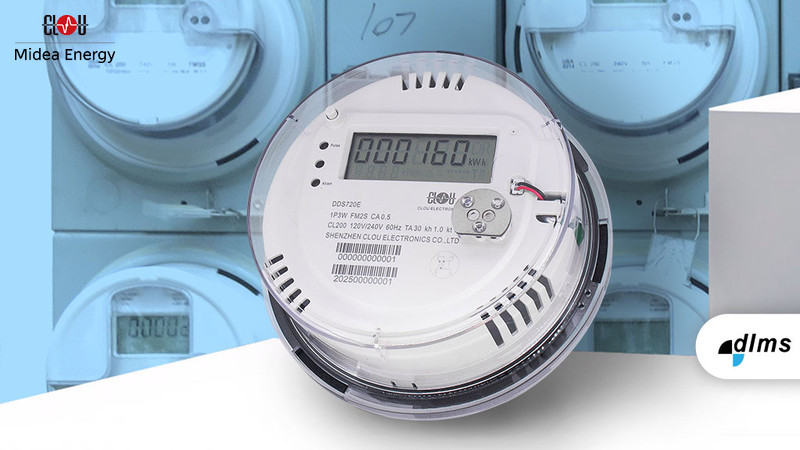

DDS720E ANSI socket-type meter is a solid-state single-phase residential meter designed to provide utilities with exceptional digital accuracy, reliability, and maintainability, while being cost-effective.
The meter strictly adheres to ANSI standards C12.1-2008 "Meter Specifications" and C12.2-2010 "Meter 0.2 and 0.5 Accuracy Levels". It uses high-quality components to ensure its accuracy and reliability, and advanced manufacturing technology guarantees precise measurement, rich functionality, and extended lifespan. The meter housing is made of sturdy flame-retardant, anti-aging materials and employs ultrasonic welding technology. Its multifunctional communication capabilities allow the meter to easily integrate into existing data collection systems, offering advanced metering advantages.
Functions
- Measurement Modes: Supports bidirectional/unidirectional metering
- Display System: Wide-temperature-range large-screen LCD
- Data Interface: Built-in infrared communication module
- Power-off Operation: Passive display readout (no external power required)
- Tamper-Proof Design: Reverse wiring detection; Dual sealing protection (screw + ultrasonic welding)
Options
- Multi-Tariff Billing: Supports time-of-use pricing for flexible billing needs
- Modular Power Design: Features replaceable battery architecture to extend service life
- Dual-Mode Communication: RF/ZigBee wireless connectivity ensures reliable data transmission
- Tamper Protection: Built-in cover opening detection for enhanced security
| Item | Parameter |
|---|---|
| Scoket Type | FM1S2W, FM2S3W |
| Nominal Voltage | 1120 V, 240 V |
| Voltage Range for Operation | 0.7 Un … 1.2 Un |
| Current Class and Test Amperse | CL200 / TA30 A, CL100 TA 15 A |
| Frequency | 50 / 60 Hz |
| Display | LCD |
| Meter Constant (Kh) | 10, 20 |
| Voltage Circuit Power Consumption | ≤ 1.7 W, 1 VA |
| Current Circuit Power Consumption | ≤1 VA |
Accuracy Class Ingress Protection against Water and Dust | 0.2, 0.5 |
| Operating Temperature | – 30 ℃ … 65 ℃ |
| Storage Temperture Range | – 40 ℃ … 85 ℃ |
| Humidity | ≤ 95% |
| Communication Protocol | IR |
| Dimensions (mm) | 176 (L) × 176 (W) × 77.5 (H) |
| Weight | 800 g |
