The modern electrical grid is balancing on a moving target. Rising shares of solar, wind, and other renewable sources push flexibility to the forefront of system operations. Variability in generation has replaced the predictability of fossil fuels, creating sharp ramps both up and down within short timeframes. Grid operators now face a dual challenge: maintaining technical stability while integrating ever‑greater decentralized generation.

Electricity is a real‑time product. The system frequency, typically 50 Hz in most regions, must be maintained within tight tolerances. Even a deviation of 0.2 Hz can trigger automated protections and set off costly balancing actions. Voltage support is equally critical; excess feed‑in from rooftop PV panels can raise voltage levels beyond statutory limits, while peak demand can drag them below acceptable thresholds. Historically, centralized control and dispatchable plants provided most of the corrective action. In 2025, those levers alone are no longer enough.

The Value of Data in Stability Management

Advanced Metering Infrastructure (AMI) offers operators a granular, near‑real‑time view of what is happening across the network. Smart meters provide precise data on energy flows, load curves, and reverse power feeds from distributed generation. Aggregated at feeder or substation level, this data forms an operational map showing where voltages are drifting, where loads are peaking, and where protective schemes may soon be activated.

Such visibility allows operators to move from reactive troubleshooting to preventive control. For example, actionable data from AMI can trigger fine‑tuned voltage regulation through on‑load tap changers, capacitor banks, or reactive power control from distributed resources. Without accurate, time‑synchronized consumption and generation figures, control decisions are based on estimation — an increasingly risky approach in a volatile grid.

Data quality matters. Refresh rates of one minute or less can capture fast changes, such as a passing cloud over a solar farm that drops generation by tens of megawatts in seconds. Higher latency data is less useful for immediate control but can still serve longer‑term forecasting and planning.

Fast‑Acting Assets: The Role of Battery Energy Storage

Information alone cannot stabilize the grid. To convert insight into stability, operators need flexible, rapid‑response assets. Battery Energy Storage Systems (BESS) provide this capability with reaction times measured in milliseconds.

Modern lithium‑ion and lithium‑iron‑phosphate systems can perform multiple stabilizing functions:

• Frequency regulation: Automatic injection or absorption of active power to maintain frequency.
• Voltage support: Providing or absorbing reactive power to keep voltages within limits.
• Peak shaving: Reducing load peaks to minimize the use of expensive peaking plants.
• Ramp‑rate control: Smoothing abrupt increases or decreases from renewable generation.
• Black start assistance: Providing energization power during recovery from major outages.

When BESS units are integrated into a control loop fed by AMI data, they can be dispatched precisely where and when they are needed — avoiding unnecessary cycling and extending asset life.

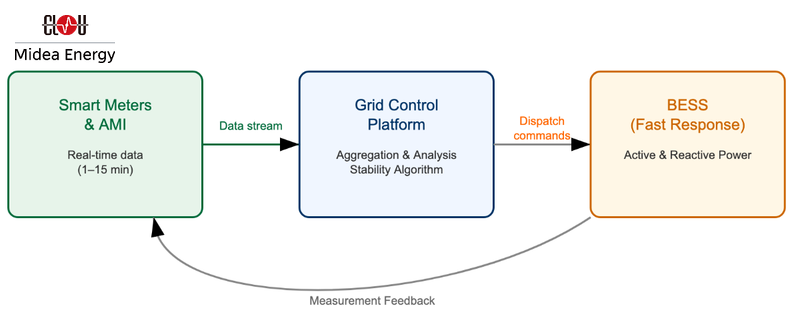

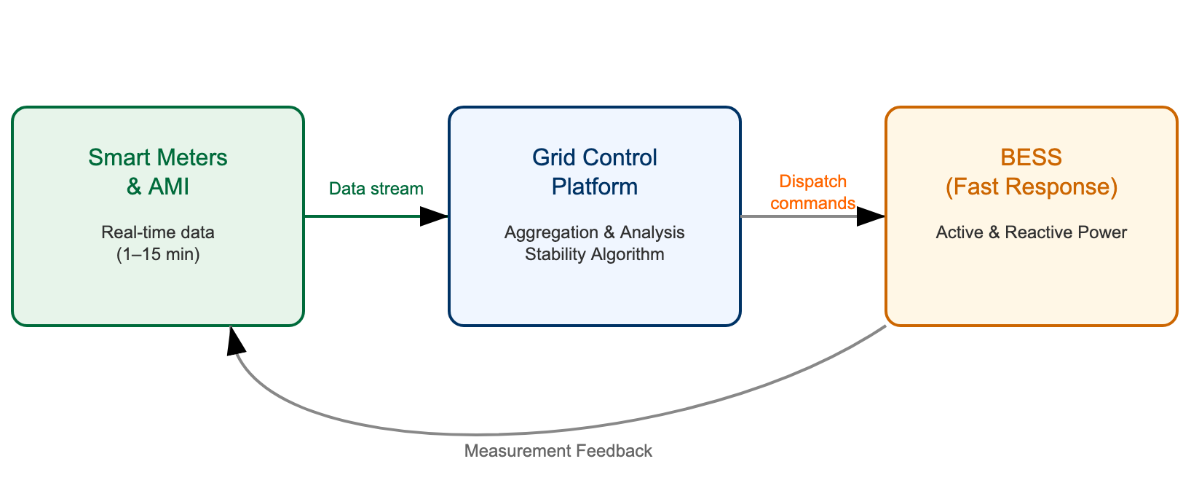

Data‑to‑Action Loop

The stabilization process can be seen as a closed control loop:

1. Measure — Smart meters and AMI capture electrical parameters from across the grid.
2. Analyse — Control centres process this data to predict instability or detect deviations.
3. Act — Dispatch commands to BESS, demand response resources, or network devices.

By tightly coupling measurement and action, an operator can respond to an event in seconds instead of minutes. The shorter the loop, the better the stability outcome.

A simplified control equation for frequency stability support from storage might be:

P_{\text{BESS}} = k_f \times (f_{\text{nom}} – f_{\text{meas}})

where:

• P_{\text{BESS}} is the active power setpoint for the battery
• k_f is the proportional gain factor
• f_{\text{nom}} is the nominal system frequency
• f_{\text{meas}} is the measured system frequency

Using AMI‑enabled measurements means f_{\text{meas}} can be taken from multiple grid points, enabling more location‑specific control rather than a one‑size‑fits‑all dispatch.

AMI and Storage Synergy in Practice

Consider a regional grid with high PV penetration. On a clear day, midday generation may exceed local demand, causing voltage rise. Smart meters report this in near real time, and the control system diverts excess to a local battery installation. Later, as the sun sets and demand rises sharply, stored energy is dispatched to maintain frequency and reduce strain on upstream transformers.

In a wind‑rich region, AMI can detect rapid drops in turbine output and trigger battery support before conventional plants can ramp up. The result: less frequency deviation and reduced activation of expensive reserve markets.

The same framework applies at multiple voltage levels. In distribution networks, strategically placed BESS supported by AMI data can prevent small‑scale instabilities from escalating into large‑scale incidents.

Planning and Investment

Utilities increasingly recognize that stability is as much about awareness as it is about capacity. AMI delivers the awareness; storage provides the capacity that is instantly available and precisely targeted. The integration of both should be considered a single investment pathway.

Where rollout of AMI is incomplete, priority placement in areas with known instability risks can deliver high returns. Where existing meter networks are under‑utilized, improving the data refresh and integrating it into active control schemes can unlock immediate value without new hardware.

For storage, modular BESS deployments offer scalability, allowing operators to match investment with actual stability needs as they evolve.

Future Direction

As distributed energy resources (DERs) proliferate, the number of potential stability actors will grow. Future AMI systems could extend beyond metering to act as measurement nodes for advanced stability analytics, providing harmonics data, phasor measurements, or even local dispatch coordination. Paired with increasingly efficient and durable storage technologies, this will allow grids to operate more like coordinated, self‑healing systems rather than rigid, centrally controlled infrastructures.

For now, the key is simple: measure with accuracy, analyse with speed, act with precision. The gap between measurement and action is where stability is won or lost.

Takeaway

Without accurate metering data and responsive storage assets, grid stability will increasingly become an expensive guessing game. The operators who invest in both will run a stronger, more adaptable grid at a lower operational cost.
