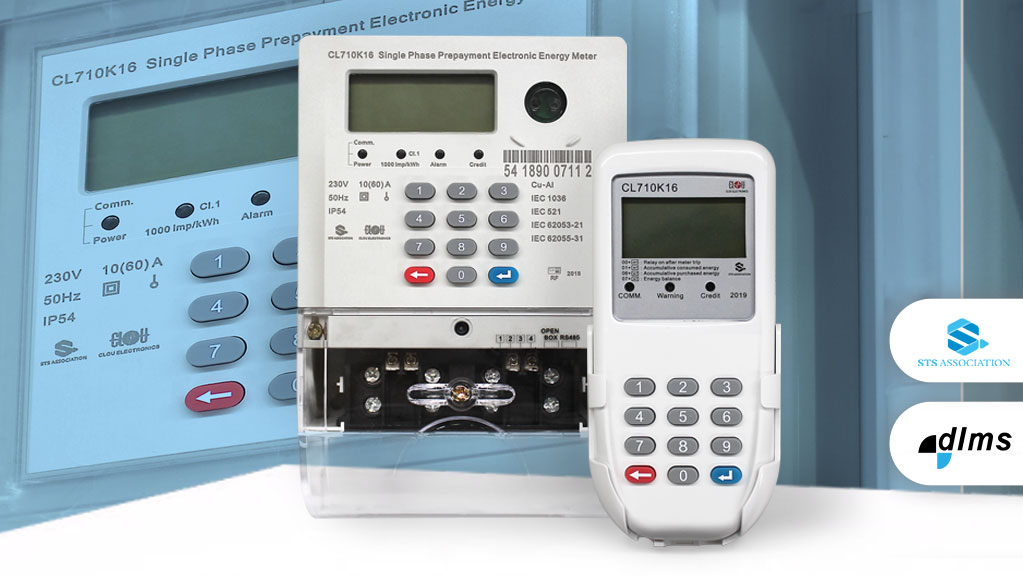

Introducing CL710K16 – the advanced multi-function single-phase smart meter with embedded communication. This advanced meter is designed to accurately measure electrical energy for both commercial and residential customers, making it a versatile solution for a wide range of applications. With its prepayment capability, CL710K16 is compliant with the STS (Standard Transfer Specification
The Standard Transfer Specification STS) standard, providing a secure and convenient way to manage energy usage.
 | IEC 62053-21 |
 | SICEM type test certified |
 | STS certified |
 | DLMS compliant |
One of the key features of CL710K16 is its seamless communication capabilities. With an optional external keypad (user interface unit UIU
User Interface Unit UIU), communication can be established through power-line carrier (PLC), radio frequency (RF), or cable connection. This ensures flexible and efficient communication between the meter and the user interface, allowing for convenient access to energy consumption data and easy management of energy usage.
CL710K16 is a state-of-the-art smart meter that empowers both commercial and residential customers to monitor and manage their energy consumption accurately and effectively. Its embedded communication capabilities and compliance with the STS standard make it a reliable and secure choice for modern energy management.
Functions
- Active energy measurement
- Import- and export measurement
- Real time clock
- Multi tariff
Energy Meters and Tariffs (TOU, TOD, Step tariff) - Load control
What is a Load-Switch? - Maximum demand measurement
What is Maximum Demand Measurement? (optional) - Replaceable battery
- Pre/Postpaid mode switchable
- Alarm notification
- UIU by RF/cable (optional)
- STS keypad
Tamper protection
- Sealing
Sealing of Energy Meters - Terminal cover open detection
- Face cover open detection
- Reverse current detection
- Neutral current comparison
- Magnetic tamper (optional)
- Event logging
- Disconnect on tamper (external contactor)
| Item | Parameter |
|---|---|
| Nominal voltage (Un) | 110 V, 120 V, 220 V, 230 V, 240 V |
| Voltage range for operation | 0.7 Un to 1.3 Un |
| Nominal frequency | 50 Hz, 60 Hz |
| Current | 5 (40) A, 5 (60) A, 5 (80) A |
| Display | LCD |
| Operating temperature | -25°C to +70°C |
| Humidity | < 95% |
| Accuracy class | Active energy class 1 |
| Ingress protection | IP54 |
| Communication | Infrared port, RS-485, optional virtual token carrier, optional exchangeable modules for RF, PLC and 2G/3G/4G |
| Dimensions | 163 mm x 130 mm x 56 mm |
Connection type Terminal wiring for electrical energy meters | BS (LNNL) |
