Power Failure or Short Interruption?

Our region (Shenzhen, Baoan district) had recently no power supply for 10 seconds. Was this a power failure or a short interruption?
Actually, the users don’t care about the term.
But there is a definition:
Short interruption means a power supply interruption from 20 ms to 3 min. The 3 minutes are not confirmed by IEC standards, but practically used. Energy meters are tested with 5 seconds and 5 % of the nominal voltage. For poly-phase systems, a supply interruption occurs when the voltage drops below 10 % of the nominal voltage on all phases. Otherwise, it is considered to be a voltage dip or sag.

IEC62052 11 Edition 2 voltage interruption test 4
IEC62052 11 Edition 2 voltage interruption test 4

So, to use the right wording, we had a short interruption or according to IEC a power failure.
Whatever takes longer than 3 minutes is a Power failure. To overcome these definitions, power companies are using the term Outage.

Within this 10 seconds outage and after, the power company customer service was understandable very busy. Without a proper outage management system, utilities are lost.

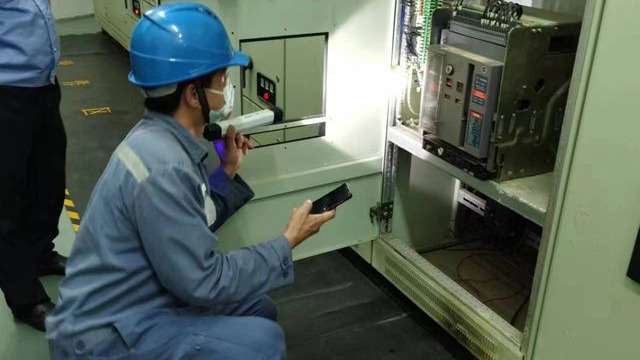

Power Company Distribution Network Debugging
Power Company Distribution Network Debugging

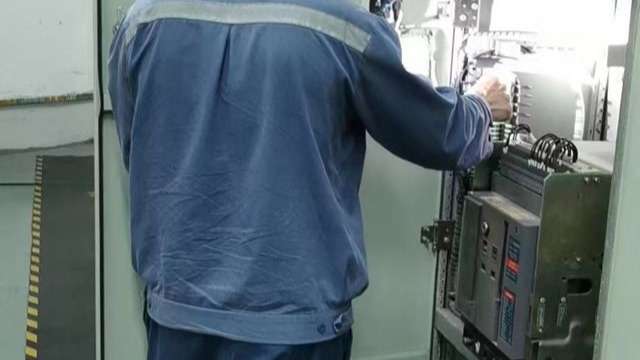

Power Company Distribution Network Service
Power Company Distribution Network Service

Within 15 minutes after the event, we’ve seen the first pictures of the power companies debugging activities in predefined communication channels. China is using primary WeChat, other countries post e.g. on Twitter.

Outage Management

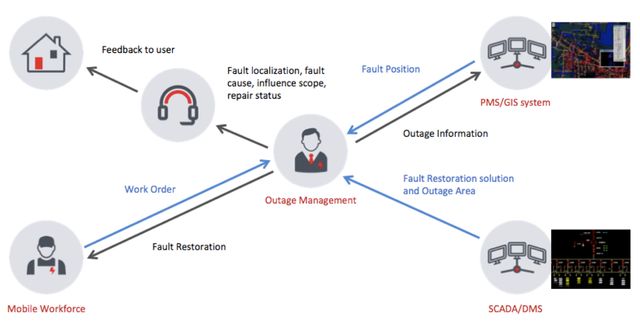

Clou Global Outage Management With Distribution Management Software
CLOU Global Outage Management With Distribution Management Software

In outage cases, our Distribution Management Software helps to reroute and restore the power supply in a short time.

Thank you for reading. May the power will always be with you.

Share This



Power Failure or Short Interruption?
QR-code for Power Failure or Short Interruption?

4 Replies to “Power Failure or Short Interruption?”

  1. For rural electrification could be very useful, cause they installed Reclosers with telecommunications to know the fail Asap. It is very expensive and only give you a general idea where is the short cut, perhaps yours is much better and economical.? Thanks

    1. Mariano, thank you for your question. A power fail can be reported by smart meters immediately via last gasp push message. But for locating, isolation of the short-cut and re-routing, reclosers and ring-main units are still the most efficient choice.

Clou Symbol55
